Cylinders
IH Cylinder Base Nut
 |

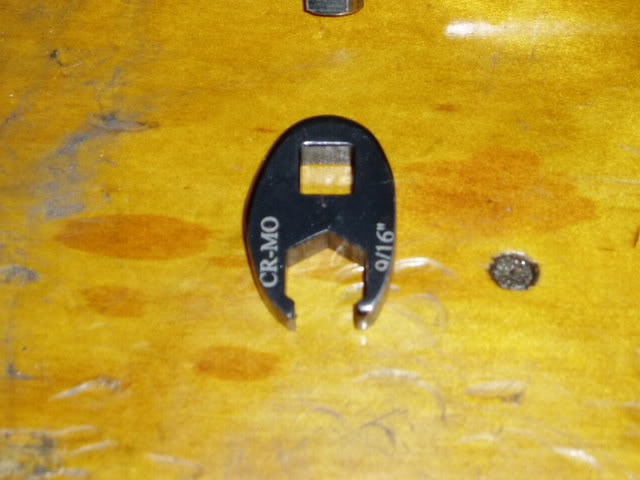

| Crows foot for the 9/16“ base nut. If you grind down a crows foot like this, it works quite well, 1) |
Measuring Cylinder Bore
 |  |
| Telescoping bore gauge and caliper for measuring cylinder I/D. 2) | |
|---|---|
Boring / Honing
Torque Plates
These are used to compress Evo Sportster cylinders to “installed” condition before measuring bore size or sizing rings.
There are multiple hole patterns for use on other model HDs also.

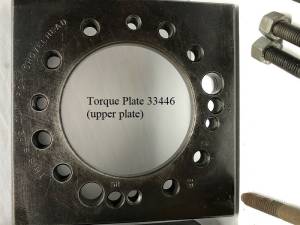

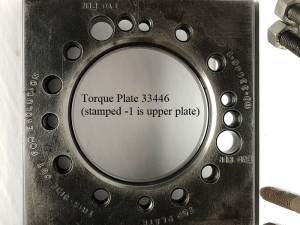

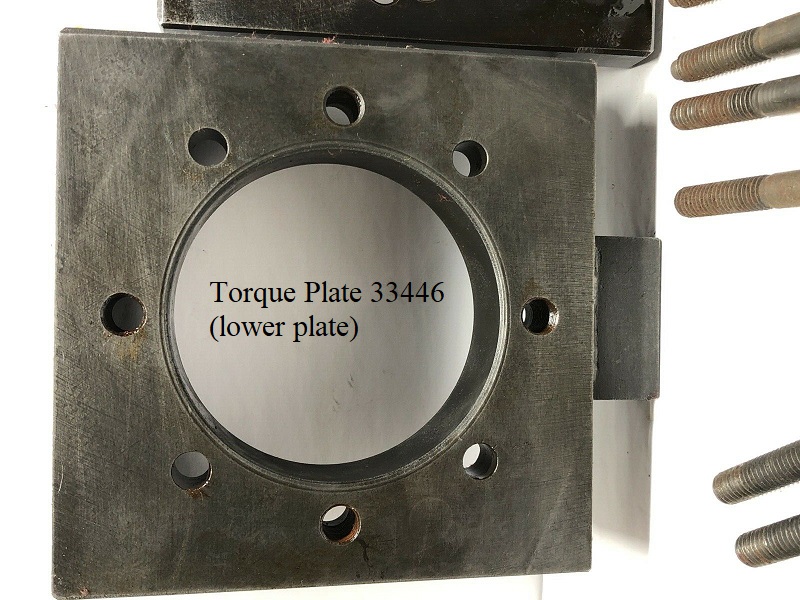

| OEM torque plates (33446) ((photos by Ebay seller, Robison Motorcycles Link to Ebay Store | |
 |  |
| OEM torque plates (33446) ((photos by Ebay seller, Robison Motorcycles Link to Ebay Store | ||
 |  |  |
