REF: Oiling & Lubrication
Sportster Oil Pump Comparisons

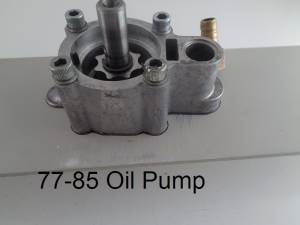

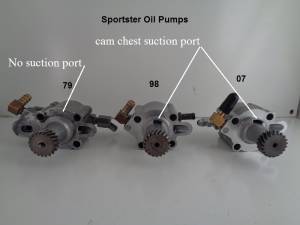

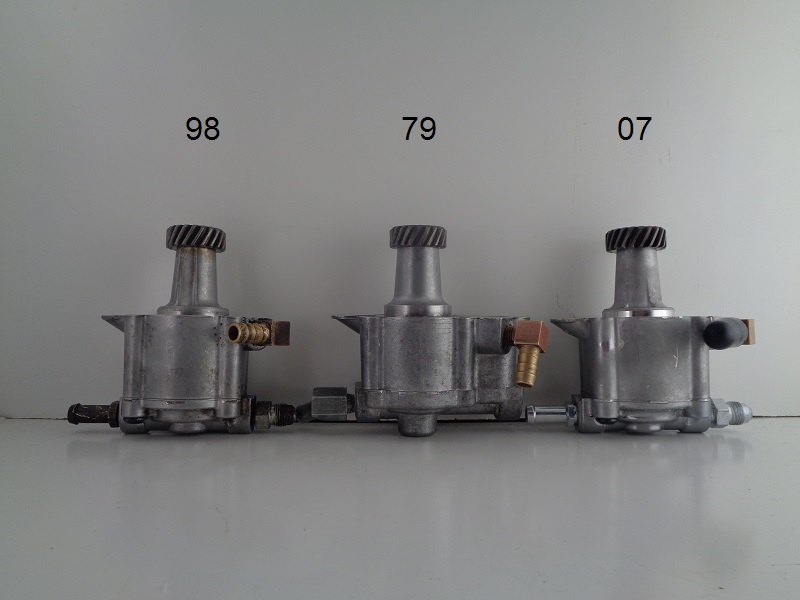

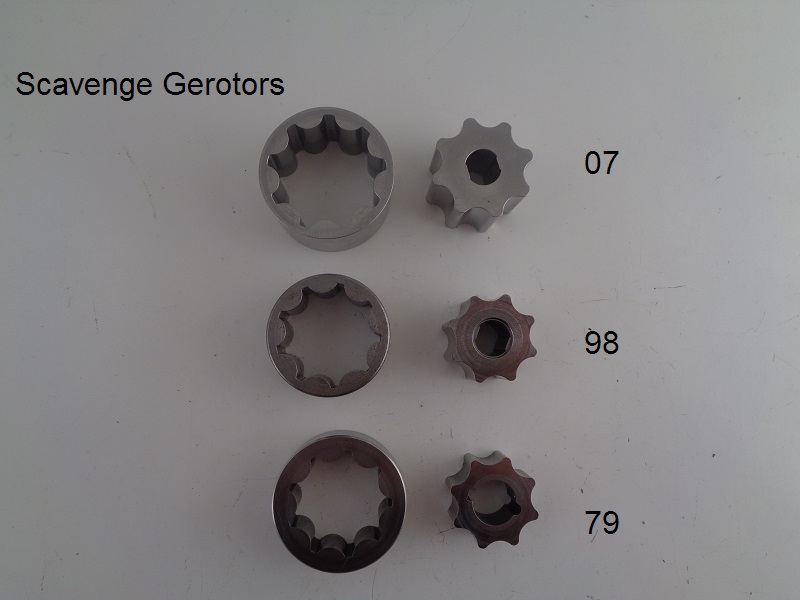

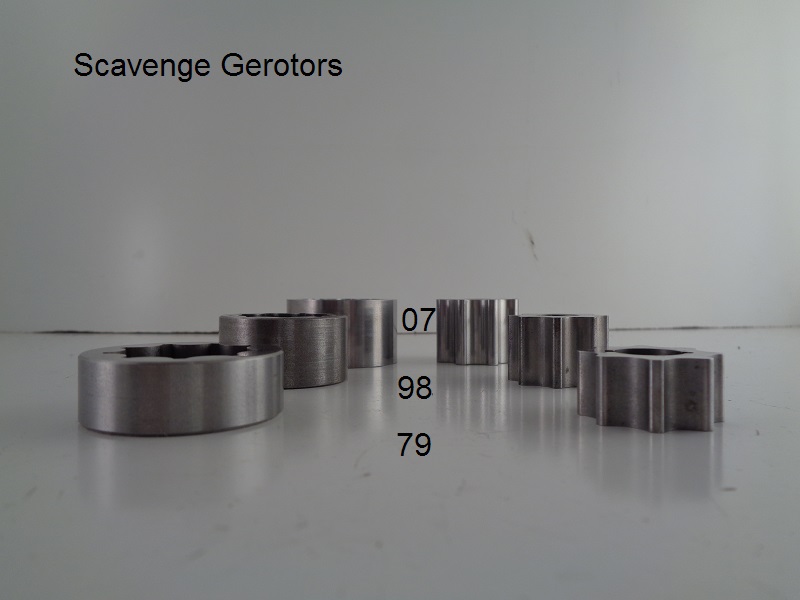

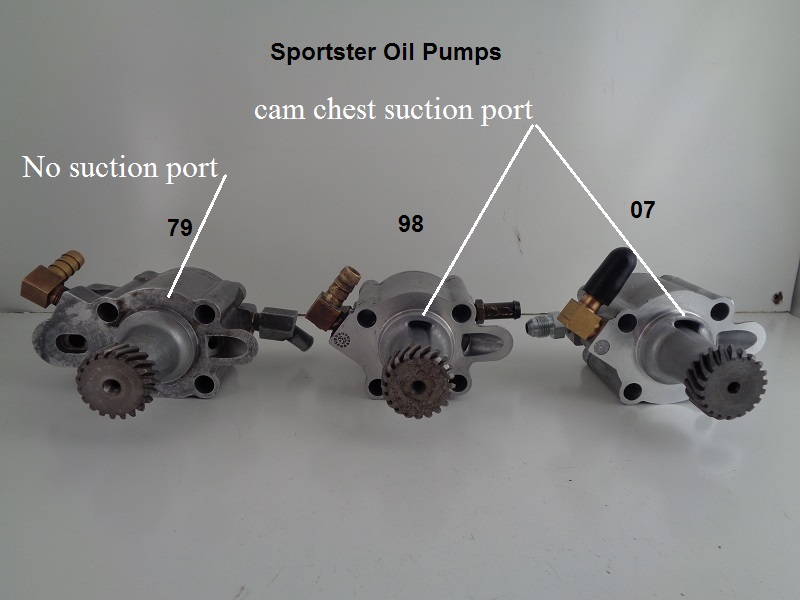

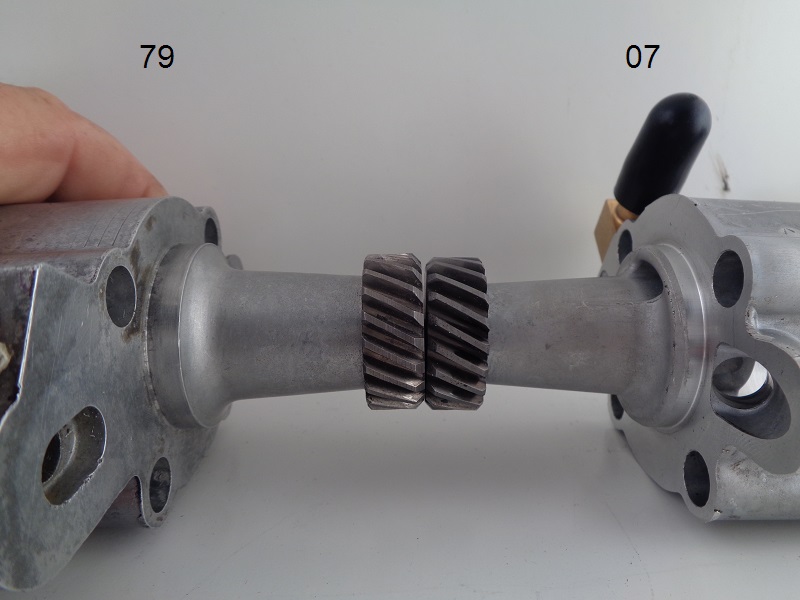

Comparing 77-85, 98-06 and 07 and up Pumps

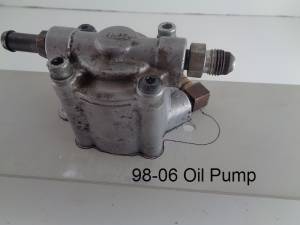

With a 98 style gasket on the 79 pump, the gasket fits nice and snug as it should be. 1)
 |
A 1-1/2“ hole was cut into an aluminum plate with 4 holes tapped to mount the pump.
Both the 79 and 98 pumps were bolted to and outlined on the aluminum sheet. 2)
 |  |  |

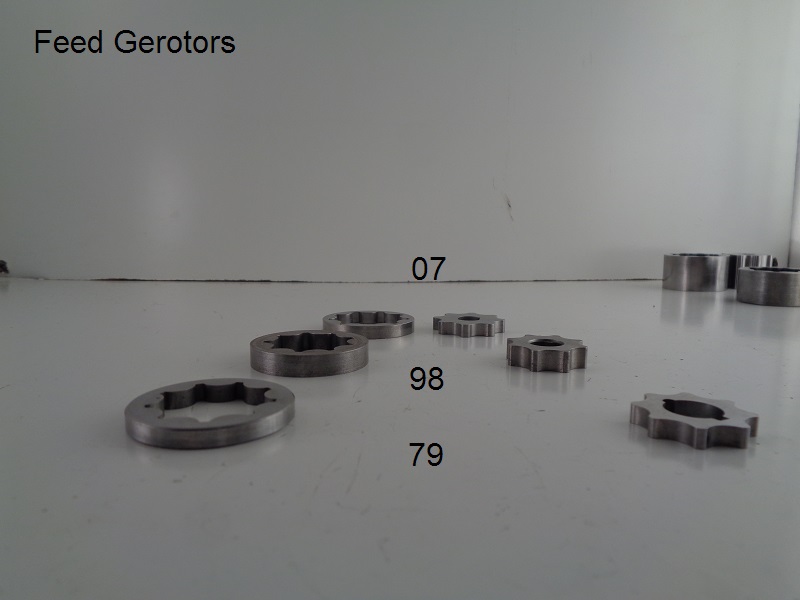

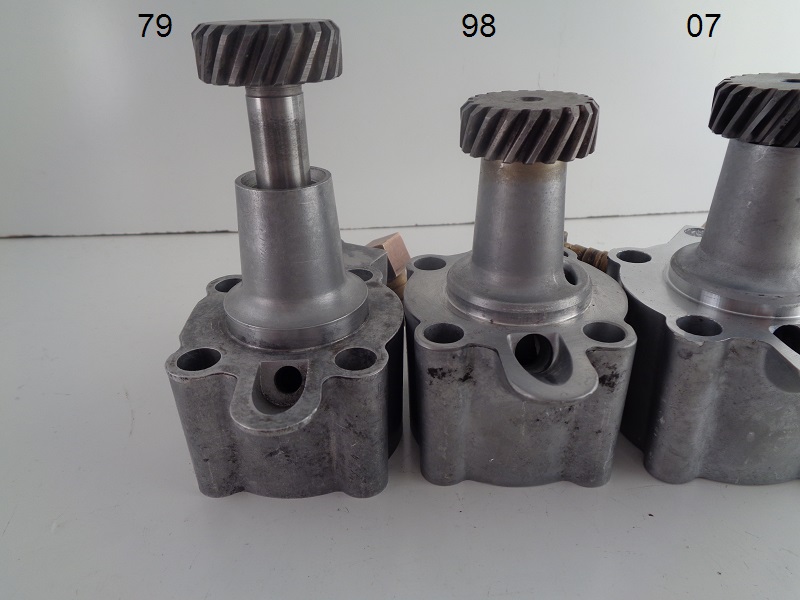

The mounting surfaces are compared below.

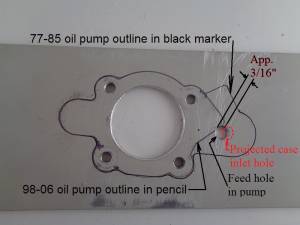

The red circle indicates the projected oil entry hole in 77-90 engine cases.
The last pic is a projected lineal of 3/16” from the outside upper edge of the 98 style pump to the center of the entry hole in the case. 3)
 |  |  |
 |
 |  |  |
 |  |  |
 |  |
 |  |
