REF: Primary Drive & Clutch

Broken Rotor / Clutch Basket Magnets

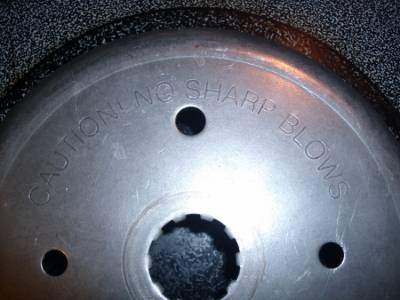

If you look on the clutch of your late Ironhead/ early EVO you'll see a warning. It says “Caution No Sharp Blows”. The BT rotor I obtained says the same thing. 1)

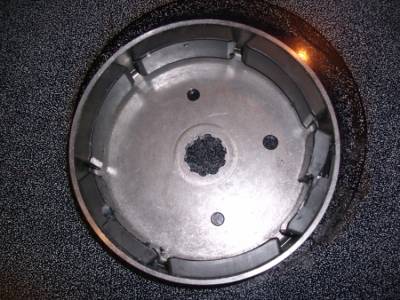

This is what can happen when you use a hammer on the clutch basket / engine sprocket rotor (respectively to your year model) 2)

This was done on purpose as an illustration. “I started slow and then went a little harder until I heard a couple of the magnets drop out”. 3)

The Dreaded Clutch Basket Wobble

"The Harton Fix" (Late 84-90 Rotor / Clutch Shell Magnets)

Or, “How to fix the dreaded clutch wobble4) 5)

This is a fix for the famous clutch shell wobble breaking magnets & stator issues on the late 84-85 ironhead and 86-90 evo engines without going to aftermarket products. The V-twin clutch and the zippers trapdoor are nice parts but I don´t think that is where the problem started. The wobble on the clutch gear splines is what I think is the biggest problem to fix in most cases. If the clutch shell can´t wobble, the magnets will not hit the stator and the problem is fixed.

Repairing the hub magnets

  • With a used clutch housing with good magnets, take all the magnets out first and re-glue them with epoxy (Loctite 3455 used in the pics below).
  • Here is a template you can make to evenly space the magnets when re-installing them
6) 7)

Mount an extra bearing at the back of the clutch

The bearing used in this example is a 6908-2RS ( 40 x 62 x 12mm ) to support the hub and fixed to the gear at the front of the clutch.
This way the clutch will not wobble on the splines.

  • You'll need to fabricate a sleeve to hold the bearing.
8) 9)

Calculating the sleeve

These dims are for reference comparison only. 10)

  1. Find distance A from the groove for the lock-ring to the start of the hole in the trap-door.
  2. Find distance B from the seat for the lock-ring in the hub to the far side of the bearing.
  3. Then, distance C = (B + the thickness of the washer under the circlip) - A
  • In the image below, the bearing is drawn a little inwards from the end of the hub just to make a point it is the bearing that matters.
    However one should try to make it flush with the end.
  • The distance 5.7mm is to make the sleeves outer protrusion flush with the stator. It can be made longer if needed.
    • Ø1 = 70.6 mm (2.780“)
    • Ø2 = 62.0 mm make slight press fit for bearing 6908
    • Ø3 = 58 mm
    • Ø4 = 63.5 mm (2.5”) make it to press fit into the trap-door.
App. dims for the bearing race (however, you must do the measuring for Your application). These were taken for an aftermarket hub.
These are the updated pics by norseXL 11)

Turn down the hub to accept the bearing

Then assemble everything
